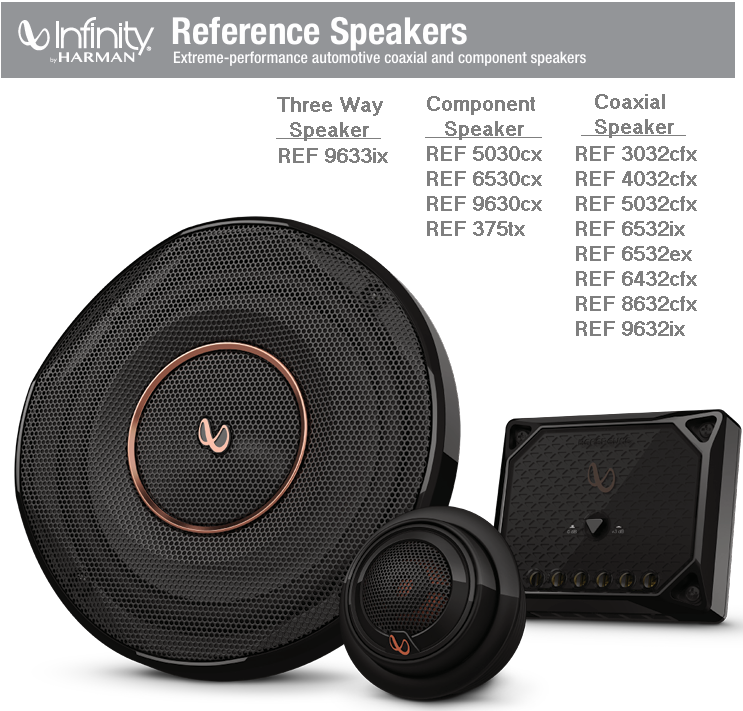

Accurate, high performance sound
New Reference speakers are designed to deliver Infinity’s signature sound in more vehicles. They feature edge-driven textile tweeters for smooth, clear highs and the larger models offer an adjustable tweeter output level control for high-frequency optimization based on installation location or the listener's preference. Oversized Plus One™ woofers offer more surface area for higher bass output and enhanced midrange performance. Plus our newly engineered baskets are optimized to fit most factory speaker locations. Available in a range of standard sizes—3", 4", 5-1/4", 6-1/2", 6" x 8" and 4" x 6" coaxial, 6" x 9" 3-way, and 5-1/4", 6-1/2", and 6" x 9" component—they’re the perfect upgrade from factory speakers.
Features
Edge-driven, textile tweeters
The audiophile-grade tweeters used in Infinity's new Reference speakers deliver smooth, non-fatiguing sound even at high output levels.
Adjustable tweeter output level
The larger Reference multielement and component systems offer a tweeter output level control to optimize system linearity to suit installation location or the listener's preference.
Plus One™ woofer cone architecture
Harman’s patented (US patent #7,548,631) Plus One™ cones provide more overall speaker-cone area than other cones in its class — the result is higher sensitivity, increased low-frequency output and accurate music reproduction.
Optimized Frame Size
Reference speakers are available in a range of standard sizes, and feature a compact design that allows them to fit just about any vehicle on the road today.
Competitive pricing
Reference speakers provide step-up Infinity sound at mainstream prices.
Technical Specifications:
| Model: | Description: | Power Handling: | Sensitivity (@2.83V): | Frequency Response: | Impedance: |

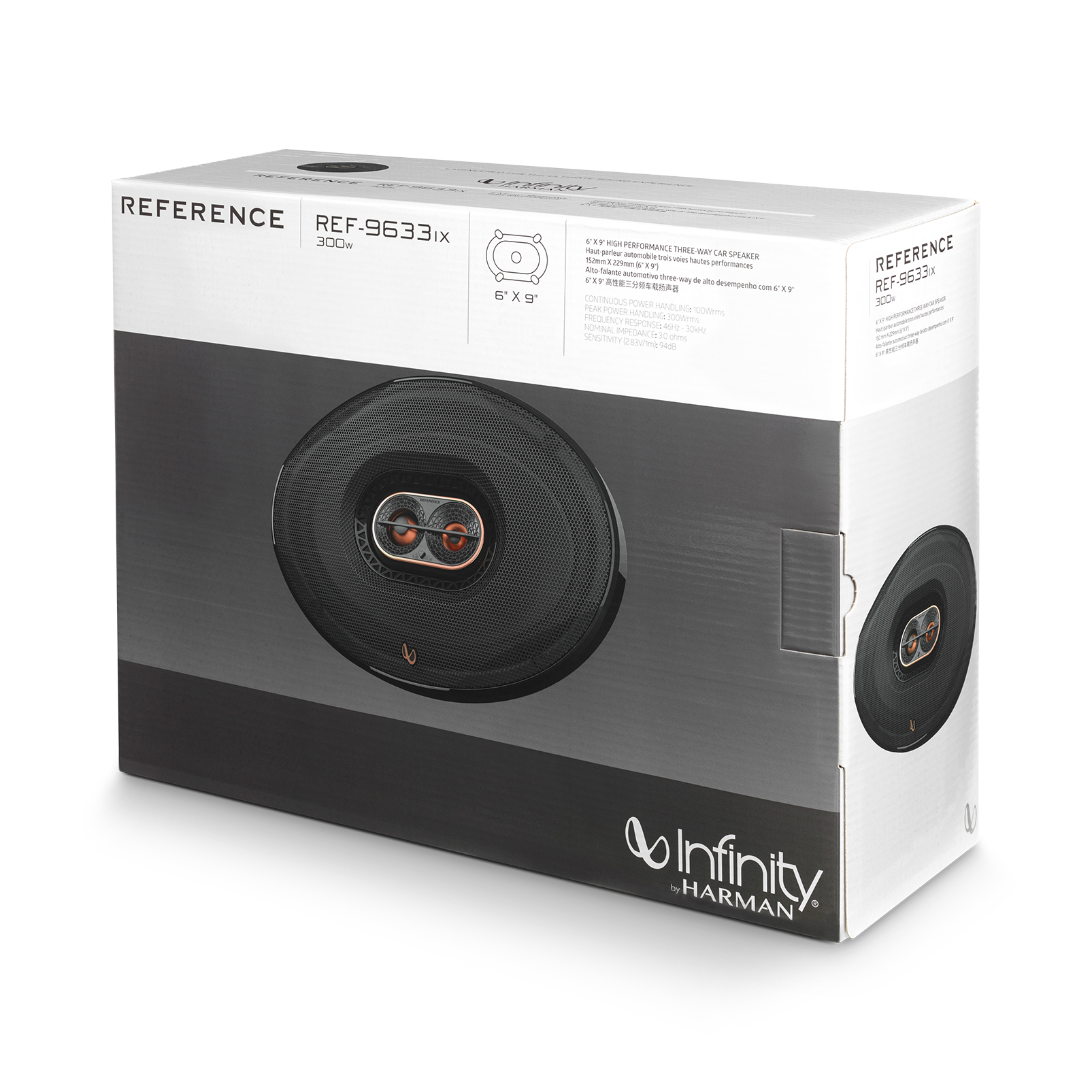

| REF 9633ix | 6" x 9" (152mm x 230mm) 3-way car speaker | 100W RMS, 300W peak | 94dB | 46Hz~30kHz | 3 ohms |

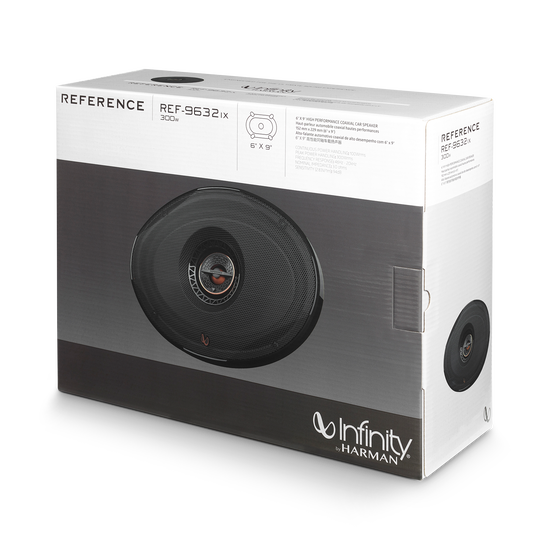

| REF 9632ix | 6" x 9" (152mm x 230mm) coaxial car speaker | 100W RMS, 300W peak | 94dB | 46Hz~20kHz | 3 ohms |
| REF 9630cx | 6" x 9" (152mm x 230mm) component speaker system | 125W RMS, 375W peak | 93dB | 46Hz~21kHz | 3 ohms |
| REF 6530cx | 6-1/2" (160mm) component speaker system | 90W RMS, 270W peak | 93dB | 53Hz – 21kHz | 3 ohms |
| REF 6532ex | 6-1/2" (160mm) shallow-mount coaxial car speaker | 55W RMS, 165W peak | 93dB | 57Hz – 21kHz | 3 ohms |

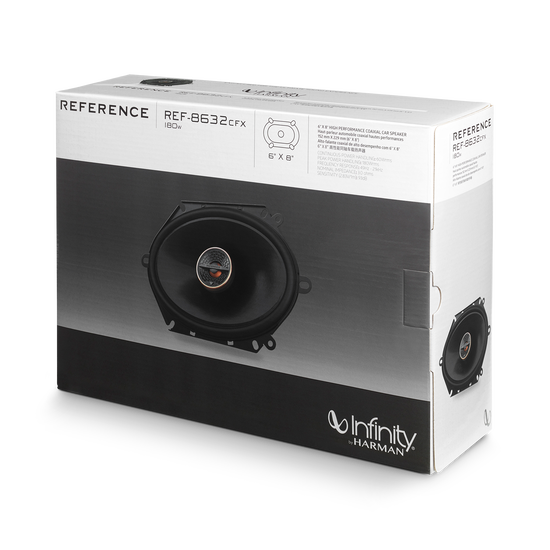

| REF 8632cfx | 6"x8" (152mm x 203mm) coaxial car speaker | 60W RMS, 185W peak | 93dB | 49Hz – 21kHz | 3 ohms |

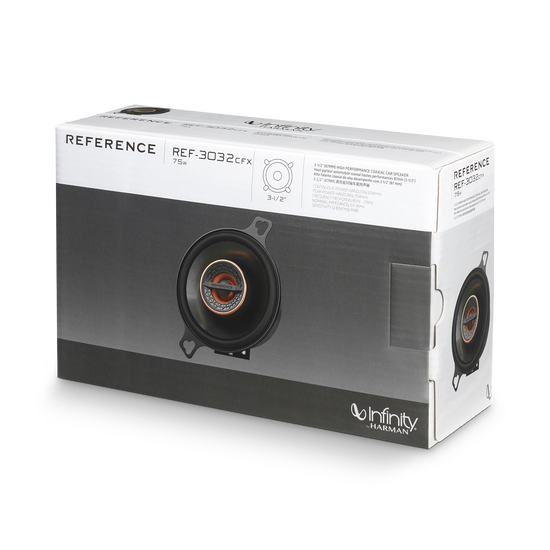

| REF 3032cfx | 3-1/2" (87mm) coaxial car speaker | 25W RMS, 75W peak | 91dB | 85Hz – 21kHz | 3 ohms |
